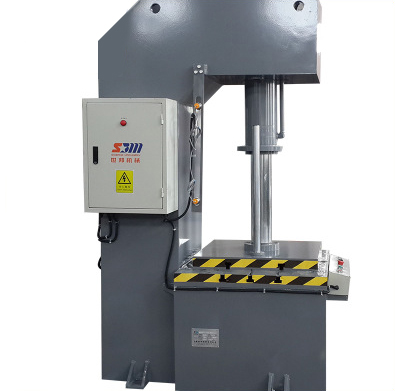

ZBJ-DD C-type hydraulic press machine

category:Single column hydraulic press machine
The number of clicks:
Release date:2018/05/18
Online inquiry

Details

Use end and characteristics：
The series hydraulic press is C-frame Single-pillar structure and the whole machine body is jointed with steel. The hydraulic system lies inside the body. Under the worktable does equip with hydraulic cushion. The electric control system applies “PC” program controller with button central controlled to achieve adjusting, manual and semi-automatic operation. The series hydraulic press applies to techniques including the drawing, punching, bending, crimping, amendment, pushing mounting, cold and hot extrusion, etc of metal materials as well as powder and plastic products for press forming.

The operation is very convenient with C-frame single arm structure. The hydraulic system lies inside the body. Under the worktable does equip with hydraulic base. Working press stroke can be adjustable within the specific range. The series hydraulic press applies to techniques including the drawing, bending, incusing, blanking, amendment, pushing mounting, etc of metal parts as well as the forming of general powder and abrasive products, plastic products and insulating materials for press forming.
Optional accessories：
●Accessorial worktable
●Precise straightening system
●Photo-electrical protection device
●Touch style industry screen
●Rate speed regulation system
●Hydraulic system heating
●Cooling device
●Ramming mixes device
●PLC Programmable Logic Controller

參數名稱Parameter	單位Unit	ZBJ-DD-10	ZBJ-DD-16	ZBJ-DD-25	ZBJ-DD-40	ZBJ-DD-63	ZBJ-DD-100	ZBJ-DD-150
公稱壓力Nominal pressure	KN	160	160	250	400	630	1000	1500
滑塊行程Stroke of Slide block	mm	300	350	350	400	500	500	500
滑塊下平面距工作臺的最大距離 Max distance from bottom surface of slide block to worktable	mm	500	550	600	700	800	800	800
工作臺尺寸（左右×前后）Worktable size(Right to left ×Front to back )	mm	600×450	650×500	650×500	700×550	800×650	800×700	900*900
液體最大工作壓力Max work pressure of liquid	Mpa	13	12	16	20	25	25	25
滑塊下行速度Descent speed of slide block	mm/s	40	48	48	33	32	27	27
滑塊回程速度Return speed of slide block	mm/s	50	70	70	65	50	40	50
喉深Throat depth	mm	250	300	260	320	350	350	400
外形尺寸（長×寬×高）Overall Dimensions (length×width × height)	mm	1100×800 ×1800	1100×850 ×2100	1200×830 ×2400	1500×800 ×2500	1600×1200 ×2600	1800×1400 ×3000	19001500 3100
電機功率Electric Power	kw	2.2	4	5.5	7.5	7.5	7.5	11.5
重量Weight	kg	1000	1300	1800	3500	5500	6500	7000
